Example: Windshield wiper

Published 2012-01-08 | Author: Jimi Oke

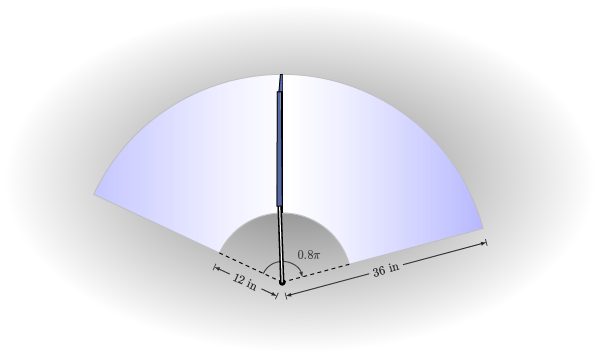

A windshield or windscreen is the front window of a car, a bus, or an aircraft, for example. Wipers are used for removing rain and debris from it. This drawing has been made for students who were calculating the area swept by the blade of the wiper.

Download as: [PDF] [TEX]  •  [Open in Overleaf]

Windshield wiper

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

% Windshield wiper - drawing for calculating the area swept by the blade
% Author: Jimi Oke
\documentclass{article}
\usepackage[margin=2cm]{geometry}
\usepackage{tikz}
\usetikzlibrary{fadings}
\begin{document}
\begin{tikzpicture}[>=latex]
    \tikzfading[name=fade out, inner color=transparent!0,
         outer color=transparent!100]

    % dimensions and angle
    \draw[|<->|, xshift=0.1cm,yshift=-0.4cm]
    (15:0) -- (15:6) node[fill=white, midway,sloped] {36 in} ;

    \draw[|<->|, xshift=-0.15cm,yshift=-0.4cm]
    (155:0) -- (155:2) node[fill=white, midway,sloped] {12 in} ;

    \draw[<-] (15:.6) arc (15:155:.6) ;
    \node at (45:1.1) {$0.8\pi$} ;

    % background/shading
    \fill [gray, path fading=fade out] (-8,-2) rectangle (9,8);

    % sweep area
    \filldraw[gray!50,left color=blue!25, right color=blue!30, middle color=white]
    (15:2) arc (15:155:2) -- (155:2) -- (155:6) arc (155:15:6) -- (15:2) ;

    \draw[dashed] (15:0) -- (15:2) ;
    \draw[dashed] (155:0) -- (155:2) ;

    % wiper blade
    \filldraw(0,0) circle (.08cm) ;
    \filldraw[very thick,black,double distance=1pt] (92:0) -- (92:2.2) ;
    \draw[ultra thick] (90:2) -- (90:6) ;
    \draw[fill=gray!90!blue] (90.5:2.2) -- (94:2.2) -- (91.5:5.5) --
    (90.5:5.5);
    \draw[fill=gray!90!blue]  (90:5.5) -- (91:5.5) -- (90.5:6) --
    (90:6);
\end{tikzpicture}
\end{document}
