Example: Sudoku 3D cube

Published 2008-08-11 | Author: Stefan Kottwitz

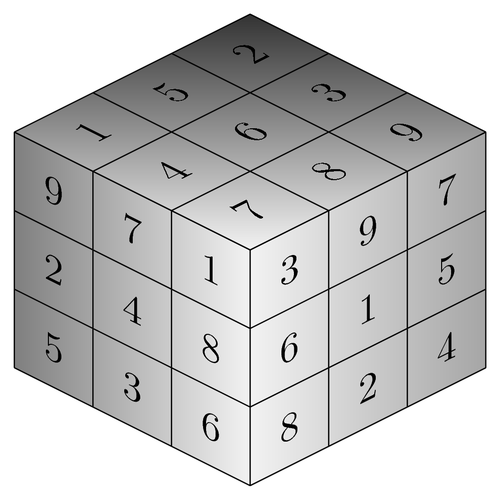

This example shows how to create an effective 3D effect using the slant transformation. Shading has been added to enhance the 3D impression. Read more about this example over at TeXblog.

Author:Stefan Kottwitz
Source:TeXblog - TikZ: shaded cube

Download as: [PDF] [TEX]  •  [Open in writeLaTeX]

Sudoku 3D cube

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de.

% :Author: Stefan Kottwitz
% :Source: TeXblog - TikZ: shaded cube
%          http://texblog.net/latex-archive/graphics/tikz-cube-3d/
\documentclass[12pt]{article}
\usepackage{tikz}
\usetikzlibrary{positioning}
\begin{document}
\large
\pagestyle{empty}
\begin{tikzpicture}[every node/.style={minimum size=1cm},on grid]
\begin{scope}[every node/.append style={yslant=-0.5},yslant=-0.5]
  \shade[right color=gray!10, left color=black!50] (0,0) rectangle +(3,3);
  \node at (0.5,2.5) {9};
  \node at (1.5,2.5) {7};
  \node at (2.5,2.5) {1};
  \node at (0.5,1.5) {2};
  \node at (1.5,1.5) {4};
  \node at (2.5,1.5) {8};
  \node at (0.5,0.5) {5};
  \node at (1.5,0.5) {3};
  \node at (2.5,0.5) {6};
  \draw (0,0) grid (3,3);
\end{scope}
\begin{scope}[every node/.append style={yslant=0.5},yslant=0.5]
  \shade[right color=gray!70,left color=gray!10] (3,-3) rectangle +(3,3);
  \node at (3.5,-0.5) {3};
  \node at (4.5,-0.5) {9};
  \node at (5.5,-0.5) {7};
  \node at (3.5,-1.5) {6};
  \node at (4.5,-1.5) {1};
  \node at (5.5,-1.5) {5};
  \node at (3.5,-2.5) {8};
  \node at (4.5,-2.5) {2};
  \node at (5.5,-2.5) {4};
  \draw (3,-3) grid (6,0);
\end{scope}
\begin{scope}[every node/.append style={
    yslant=0.5,xslant=-1},yslant=0.5,xslant=-1
  ]
  \shade[bottom color=gray!10, top color=black!80] (6,3) rectangle +(-3,-3);
  \node at (3.5,2.5) {1};
  \node at (3.5,1.5) {4};




  \node at (3.5,0.5) {7};
  \node at (4.5,2.5) {5};
  \node at (4.5,1.5) {6};
  \node at (4.5,0.5) {8};
  \node at (5.5,2.5) {2};
  \node at (5.5,1.5) {3};
  \node at (5.5,0.5) {9};
  \draw (3,0) grid (6,3);
\end{scope}
\end{tikzpicture}
\end{document}
