Example: Rule based diagram

Published 2009-11-04 | Author: Remus Mihail Prunescu

Download as: [PDF] [TEX]  •  [Open in writeLaTeX]

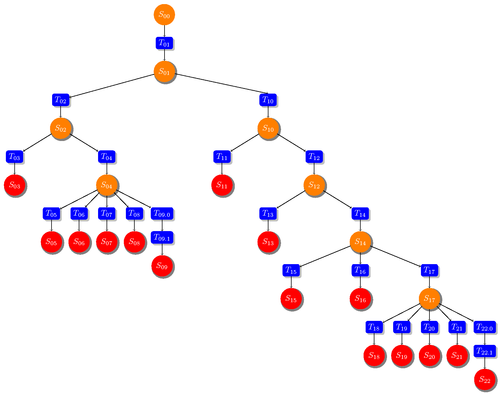

Rule based diagram

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de.

% Rule based diagram
% Author: Remus Mihail Prunescu
\documentclass{minimal}
\usepackage[a4paper,margin=1cm,landscape]{geometry}
\usepackage{tikz}
\usetikzlibrary{positioning,shadows,arrows}

\begin{document}
\begin{center}
\begin{tikzpicture}[
    fact/.style={rectangle, draw=none, rounded corners=1mm, fill=blue, drop shadow,
        text centered, anchor=north, text=white},
    state/.style={circle, draw=none, fill=orange, circular drop shadow,
        text centered, anchor=north, text=white},
    leaf/.style={circle, draw=none, fill=red, circular drop shadow,
        text centered, anchor=north, text=white},
    level distance=0.5cm, growth parent anchor=south
]
\node (State00) [state] {$S_{00}$} [->]
    child{
        node (Fact01) [fact] {$T_{01}$}
        child{ [sibling distance=9cm]
            node (State01) [state] {$S_{01}$}
            child{
                node (Fact02) [fact] {$T_{02}$}
                child{ [sibling distance=4cm]
                    node (State02) [state] {$S_{02}$}
                    child{
                        node (Fact03) [fact] {$T_{03}$}
                        child{
                            node (State03) [leaf] {$S_{03}$}
                        }
                    }
                    child{
                        node (Fact04) [fact] {$T_{04}$}
                        child{ [sibling distance=1.2cm]
                            node (State04) [state] {$S_{04}$}
                            child{
                                node (Fact05) [fact] {$T_{05}$}
                                child{
                                    node (State05) [leaf] {$S_{05}$}
                                }
                            }
                            child{
                                node (Fact06) [fact] {$T_{06}$}
                                child{
                                    node (State06) [leaf] {$S_{06}$}
                                }
                            }
                            child{
                                node (Fact07) [fact] {$T_{07}$}
                                child{
                                    node (State07) [leaf] {$S_{07}$}
                                }
                            }
                            child{
                                node (Fact08) [fact] {$T_{08}$}
                                child{
                                    node (State08) [leaf] {$S_{08}$}
                                }
                            }
                            child{
                                node (Fact09) [fact] {$T_{09.0}$}
                                child{
                                    node (Fact09-1) [fact] {$T_{09.1}$}
                                    child{
                                        node (State09) [leaf] {$S_{09}$}
                                    }
                                }
                            }
                        }
                    }
                }
            }
            child{ [sibling distance=4cm]
                node (Fact10) [fact] {$T_{10}$}
                child{
                    node (State10) [state] {$S_{10}$}
                    child{
                        node (Fact11) [fact] {$T_{11}$}
                        child{
                            node (State11) [leaf] {$S_{11}$}
                        }
                    }
                    child{
                        node (Fact12) [fact] {$T_{12}$}
                        child{
                            node (State12) [state] {$S_{12}$}
                            child{
                                node (Fact13) [fact] {$T_{13}$}
                                child{
                                    node (State13) [leaf] {$S_{13}$}
                                }
                            }
                            child{
                                node (Fact14) [fact] {$T_{14}$}
                                child{ [sibling distance=3cm]
                                    node (State14) [state] {$S_{14}$}
                                    child{
                                        node (Fact15) [fact] {$T_{15}$}
                                        child{
                                            node (State15) [leaf] {$S_{15}$}
                                        }
                                    }
                                    child{
                                        node (Fact16) [fact] {$T_{16}$}
                                        child{
                                            node (State16) [leaf] {$S_{16}$}
                                        }
                                    }
                                    child{
                                        node (Fact17) [fact] {$T_{17}$}
                                        child{ [sibling distance=1.2cm]
                                            node (State17) [state] {$S_{17}$}
                                            child{
                                                node (Fact18) [fact] {$T_{18}$}
                                                child{
                                                    node (State18) [leaf] {$S_{18}$}
                                                }
                                            }
                                            child{
                                                node (Fact19) [fact] {$T_{19}$}
                                                child{
                                                    node (State19) [leaf] {$S_{19}$}
                                                }
                                            }
                                            child{
                                                node (Fact20) [fact] {$T_{20}$}
                                                child{
                                                    node (State20) [leaf] {$S_{20}$}
                                                }
                                            }
                                            child{
                                                node (Fact21) [fact] {$T_{21}$}
                                                child{
                                                    node (State21) [leaf] {$S_{21}$}
                                                }
                                            }
                                            child{
                                                node (Fact22) [fact] {$T_{22.0}$}
                                                child{
                                                    node (Fact22-1) [fact] {$T_{22.1}$}
                                                    child{
                                                        node (State22) [leaf] {$S_{22}$}
                                                    }
                                                }
                                            }
                                        }
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }
    }
;

\end{tikzpicture}
\end{center}
\end{document}

Comments

  • #1 Atif, June 25, 2010 at 3:35 a.m.

    Sooper!! Thanks a lot.

  • #2 Atif, June 25, 2010 at 3:38 a.m.

    Is it possible that the siblings of a node don't have same distance between them? Thanks in advance for the reply.

  • #3 Bordaigorl, June 30, 2012 at 5:48 p.m.

    @Atif: child[sibling distance=1.2cm]{...} affects the distance between that child and the next one.
