Example: RNA codons table

Published 2009-08-11 | Author: Florian Hollandt

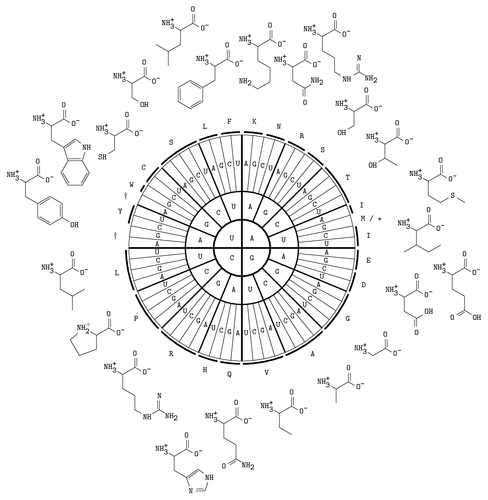

A table of the RNA codons together with the amino acids they encode.

Download as: [PDF] [TEX]  •  [Open in Overleaf]

RNA codons table

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

% RNA codons
% Author: Florian Hollandt
\documentclass{article}

\usepackage{tikz}
\setlength\oddsidemargin{0in}


\begin{document}

\ttfamily
\footnotesize

\pagestyle{empty}

\begin{center}
\begin{tikzpicture}
\tikzstyle{every node}=[inner sep=1.7pt,anchor=center]
%	to_x and from_x styles denote bonds terminating or starting in labeled nodes. x denotes the number of letters in the node label.
\tikzstyle{to_1}=[shorten >=5pt]
\tikzstyle{to_1i}=[shorten >=6pt]
\tikzstyle{to_2}=[shorten >=7pt]
\tikzstyle{to_3}=[shorten >=8pt]
\tikzstyle{from_1}=[shorten <=5pt]
\tikzstyle{from_1i}=[shorten <=6pt]
\tikzstyle{from_2}=[shorten <=8pt]
\begin{scope}
\draw [ultra thick] circle(1cm);
\draw [ultra thick] (0:4)--(180:4) (90:4)--(270:4);
\foreach \a/\l in {45/A,135/G,225/C,315/U}{
	\node at (90-\a:0.5cm) {\l};
}
\draw [very thick] circle(2cm);
\foreach \A in {90,0,270,180}{
	\foreach \a/\l in {22.5/A,45/G,67.5/C,90/U}{
		\draw [very thick] (\A+\a:1) -- (\A+\a:4);
		\node at (\A-\a+11.25:1.5) {\l};
	}
}
\draw circle(4cm) (0:4)--(180:4) (90:4)--(270:4);
\foreach \A in {90,180,270,0}{
	\foreach \a in {0,22.5,45,67.5}{
		\foreach \i/\l in {5.625/A,11.25/G,16.875/C,22.5/U}{
			\draw (\A+\a+\i:2) -- (\A+\a+\i:4);
			\node at (\A-\a-\i+2.8125:3) {\l};
		}
	}
}
\end{scope}
\begin{scope}[scale=0.5]	% Lysine
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (90:8.2)
				arc(90:90-2*5.625:8.2);
\path (90-0.8*5.625:14.3) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center) 	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_3]  (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {}
				-- ++(270:1) node (Cd) {}
				-- ++(210:1) node (Ce) {}
				-- ++(150:1) node (Cf) {NH$_{\mbox{2}}$};
\end{scope}
\begin{scope}[scale=0.5]	% Asparagine
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (90-2*5.625:8.2)
				arc(90-2*5.625:90-4*5.625:8.2);
\path (90-3.5*3.625-3:13.3) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_2]  (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {}
				-- +(30:1) node (Cd) {NH$_{\mbox{2}}$};
\draw[to_1i] (Cc.center)	-- +(270:1) node (O) {};
\draw[to_1]  (Cc.210)		-- (O.150);
\path (O.center) node {O};
\end{scope}
\begin{scope}[scale=0.5]	% Arginine
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (90-22.5:8.2)
				arc(90-22.5:90-33.75:8.2);
\path (90-3.7*5.625:16) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_2]  (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {}
				-- ++(270:1) node (Cd) {}
				-- ++(330:1) node (NH1) {NH};
\draw[from_2,to_3]  (NH1.center)	-- ++(30:1) node (Ce) {}
				-- ++(330:1) node {NH$_{\mbox{2}}$};
\draw[to_1i] (Ce.center)	-- ++(90:1) node (N2) {};
\draw[to_1]  (Ce.150)		-- (N2.210);
\path (N2) node {N};
\end{scope}
\begin{scope}[scale=0.5]	% Serine
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (90-22.5-2*5.625:8.2)
				arc(90-33.75:90-33.75-11.25:8.2);
\path (90-7*5.625:12.5) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_2]  (zero.center)	-- ++(270:1) node(Cb){} -- ++(210:1) node (Cc) {OH};
\end{scope}
\begin{scope}[scale=0.5]	% Threonine
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (90-45:8.2)
				arc(90-45:90-67.5:8.2);
\path (90-45-0.8*11.25:12.5) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_2]  (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {} (Cb.center)
				-- +(210:1) node {OH};
\end{scope}
\begin{scope}[scale=0.5]	% Methionine
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (90-67.5:8.2)
				arc(90-67.5:90-67.5-5.625:8.2);
\path (90-67.5-0.5*5.625:14) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_1]  (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {}
				-- ++(30:1) node (Cd) {S};
\draw[from_1] (Cd.center)	-- +(330:1);
\end{scope}
\begin{scope}[scale=0.5]	% Isoleucine
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (0:8.2)
				arc(0:11.25:8.2);
\path (1.0*5.625:12.4) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw	     (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {}
				-- +(30:1) node (Cd) {} (Cb.center)
				-- +(210:1) node (Ce) {};
\end{scope}
\begin{scope}[scale=0.5]	% Glutamic acid
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (0:8.2)
				arc(0:-11.25:8.2);
\path (-1.3*5.625:15) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)  	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)  		-- +(90:1);
\draw[to_3]  (zero.center) 	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_1i] (zero.center) 	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {}
				-- ++(270:1) node (Cd) {}
				-- ++(330:1) node (NH) {OH};
\draw[to_1]  (Cd.center) 	-- +(210:1) node (O) {};
\draw[to_1i] (Cd.270) 		-- (O.300);
\path (O.center) node {O};
\end{scope}
\begin{scope}[scale=0.5]	% Aspartic acid
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (-11.25:8.2)
				arc(-11.25:-22.5:8.2);
\path (-11.25-5.625:12) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center) 	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_2]  (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {}
				-- +(30:1) node (Cd) {OH};
\draw[to_1i] (Cc.center)	-- +(270:1) node (O) {};
\draw[to_1]  (Cc.210)		-- (O.150);
\path (O.center) node {O};
\end{scope}
\begin{scope}[scale=0.5]	% Glycine
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (-22.5:8.2)
				arc(-22.5:-45:8.2);
\path (-33.75-1*5.625:12) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\end{scope}
\begin{scope}[scale=0.5]	% Alanine
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (-45:8.2)
				arc(-45:-68.25:8.2);
\path (-45-11.25:12) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw	     (zero.center)	-- ++(270:1) node(Cb){};
\end{scope}
\begin{scope}[scale=0.5]	% Valine
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (-68.25:8.2)
				arc(-68.25:-90:8.2);
\path (-68.25-0.8*11.25:12) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw (zero.center)		-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {};
\end{scope}
\begin{scope}[scale=0.5]	% Glutamine
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (-90:8.2)
				arc(-90:-101.25:8.2);
\path (-90.25-5.625:12.5) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_2]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_3]  (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {}
				-- ++(270:1) node (Cd) {}
				-- ++(330:1) node (NH) {NH$_{\mbox{2}}$};
\draw[to_1]  (Cd.center)	-- +(210:1) node (O) {};
\draw[to_1i] (Cd.270)		-- (O.300);
\path (O.center) node {O};
\end{scope}
\begin{scope}[scale=0.5]	% Histidine
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (-101.25:8.2)
				arc(-101.25:-101.25-11.25:8.2);
\path (-101.25-1.2*5.625:15.5) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw        (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node(Cc){};
\draw[to_2]  (Cc.center)	-- ++(108-1*72:1) node (Cd) {}
				-- ++(108-2*72:1) node (Ce) {NH};
\draw[from_1,to_1] (Ce.center)	-- ++(108-3*72:1) node (Cf) {}
				-- ++(108-4*72:1) node (Cg) {};
\draw[from_1] (Cg.center)	-- (Cc.center);
\draw         (Cc.198+2*72)	-- (Cd.198+1*72);
\draw[from_1] (Cg.72)		-- (Cf.198+4*72);
\draw (Cg.center) node {N};
\end{scope}
\begin{scope}[scale=0.5]	% Arginine
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (-90-22.5:8.2)
				arc(-90-22.5:-90-45:8.2);
\path (-90-7.7*5.625:12.3) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_2]  (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {}
				-- ++(270:1) node (Cd) {}
				-- ++(330:1) node (NH1) {NH};
\draw[from_1i,to_3] (NH1.center)-- ++(30:1) node (Ce) {}
				-- ++(330:1) node {NH$_{\mbox{2}}$};
\draw[to_1]  (Ce.center)	-- ++(90:1) node (N2) {};
\draw[shorten >=4pt] (Ce.150)	-- (N2.210);
\path (N2) node {N};
\end{scope}
\begin{scope}[scale=0.5]	% Proline
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (-90-45:8.2)
				arc(-90-45:-90-45-22.25:8.2);
\path (-90-10.5*5.625:12) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_2]  (zero.center)	-- ++(150:1) node (nh) {NH$_{\mbox{2}}^+$};
\draw        (zero.center)	-- ++(270:1) node(Cb){};
\path        (Cb.center)	-- +(150:1) node (x) {};
\path        (x.center)  	+(170:1) node (Cd) {};
\path        (x.center)  	+(250:1) node (Cc) {};
\draw[to_3]  (Cb.center)	-- (Cc.center)
				-- (Cd.center)
				-- (nh.center);
\end{scope}
\begin{scope}[scale=0.5]	% Leucine
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (180:8.2)
				arc(180:180+22.25:8.2);
\path (-90-14.5*5.625:13) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw (zero.center)		-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {}
				-- +(30:1) node (Cd) {} (Cc.center)
				-- +(270:1) node (Ce) {};
\end{scope}
\begin{scope}[scale=0.5]	% Tyrosine
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (180-11.25:8.2)
				arc(180-11.25:180-22.5:8.2);
\path (180-3*5.625:16) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw 	     (zero.center)	-- ++(270:1) node(Cb){};
\draw	     (Cb.center)	-- ++(330:1) node (Cc) {}
				-- ++(30:1) node (Cd) {}
				-- ++(330:1) node (Ce) {}
				-- ++(270:1) node (Cf) {}
				-- ++(210:1) node (Cg) {}
				-- ++(150:1) node (Ch) {}
				-- ++(90:1);
\draw        (Cc.330)		-- (Cd.270);
\draw        (Ce.210)		-- (Cf.150);
\draw        (Cg.90)		-- (Ch.30);
\draw[to_1i] (Cf.center)	-- +(330:1) node (OH) {OH};
\end{scope}
\begin{scope}[scale=0.5]	% Tryptophane
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (180-22.5-5.625:8.2)
				arc(180-22.5-5.625:180-22.5-11.25:8.2);
\path (180-22.5-1.8*5.625:16) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw 	     (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node(Cc){};
\draw[to_2]  (Cc.center)	-- ++(108-1*72:1) node (Cd) {}
				-- ++(108-2*72:1) node (Ce) {NH};
\draw[from_1](Ce.center)	-- ++(108-3*72:1) node (Cf) {}
				-- ++(108-4*72:1) node (Cg) {};
\draw 	     (Cg.center)	-- (Cc.center);
\draw        (Cc.198+2*72)	-- (Cd.198+1*72);
\draw 	     (Cg.72)		-- (Cf.198+4*72);
\draw	     (Cg.center)	-- ++(240:1) node (Ch) {}
				-- ++(300:1) node (Ci) {}
				-- ++(0:1) node (Cj) {}
				-- ++(60:1) node (Ck) {}
				-- ++(120:1) node (Cl) {};
\draw	     (Ch.0)		-- (Ci.60);
\draw	     (Cj.120)		-- (Ck.180);
\end{scope}
\begin{scope}[scale=0.5]	% Cysteine
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (180-45+11.25:8.2)
				arc(180-45+11.25:180-45:8.2);
\path (180-45+11.25-1*7.625:12) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_2]  (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(210:1) node (Cc) {SH};
\end{scope}
\begin{scope}[scale=0.5]	% Serine
\draw[ultra thick,shorten >=1pt,shorten <=2pt] (90+45:8.2)
				arc(90+45:90+45-22.5:8.2);
\path (90+45-11.25+0*5.625:14) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw[to_2]  (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(330:1) node (Cc) {OH};
\end{scope}
\begin{scope}[scale=0.5]	% Leucine
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (90+22.5:8.2)
				arc(90+22.5:90+11.25:8.2);
\path (90+22.5-1.2*5.625:16) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw 	     (zero.center)	-- ++(270:1) node(Cb){}
				-- ++(210:1) node (Cc) {}
				-- +(150:1) node (Cd) {} (Cc.center)
				-- +(270:1) node (Ce) {};
\end{scope}
\begin{scope}[scale=0.5]	% Phenylalanine
\draw[ultra thick,shorten >=2pt,shorten <=2pt] (90+11.25:8.2)
				arc(90+11.25:90:8.2);
\path (90+1.5*5.625:13) node (zero) {};
\draw[to_2]  (zero.center)	-- ++(30:1) node (CO) {}
				-- +(330:1) node [anchor=base] {O$^{\mbox{-}}$};
\draw[to_1]  (CO.center)	-- +(90:1) node (Od) {O};
\draw[to_1i] (CO.30)		-- +(90:1);
\draw[to_3]  (zero.center)	-- ++(150:1) node {NH$_{\mbox{3}}^{\mbox{+}}$};
\draw	     (zero.center)	-- ++(270:1) node(Cb){};
\draw	     (Cb.center)	-- ++(210:1) node (Cc) {}
				-- ++(150:1) node (Cd) {}
				-- ++(210:1) node (Ce) {}
				-- ++(270:1) node (Cf) {}
				-- ++(330:1) node (Cg) {}
				-- ++(30:1) node (Ch) {}
				-- ++(90:1);
\draw	     (Cc.210)		-- (Cd.270);
\draw	     (Ce.330)		-- (Cf.30);
\draw	     (Cg.90)		-- (Ch.150);
\end{scope}
\node at (90-1*5.625:4.5) {K};
\node at (90-3*5.625:4.5) {N};
\node at (90-5*5.625:4.5) {R};
\node at (90-7*5.625:4.5) {S};
\node at (90-10*5.625:4.5) {T};
\node at (90-12.5*5.625:4.5) {I};
\node at (90-13.7*5.625:4.7) {M / $\star$};
\node at (90-15*5.625:4.5) {I};
\node at (90-17*5.625:4.5) {E};
\node at (90-19*5.625:4.5) {D};
\node at (90-22*5.625:4.5) {G};
\node at (90-26*5.625:4.5) {A};
\node at (90-30*5.625:4.5) {V};
\node at (90-33*5.625:4.5) {Q};
\node at (90-35*5.625:4.5) {H};
\node at (90-38*5.625:4.5) {R};
\node at (90-42*5.625:4.5) {P};
\node at (90-46*5.625:4.5) {L};
\node at (90-49*5.625:4.5) {$\dagger$};
\node at (90-51*5.625:4.5) {Y};
\node at (90-52.3*5.625:4.5) {$\dagger$};
\node at (90-53.3*5.625:4.5) {W};
\node at (90-55*5.625:4.5) {C};
\node at (90-58*5.625:4.5) {S};
\node at (90-61*5.625:4.5) {L};
\node at (90-63*5.625:4.5) {F};
\end{tikzpicture}
\end{center}

\end{document}

Comments

  • #1 Germain Vallverdu, September 17, 2009 at 5:47 p.m.

    Hello

    Very nice work !

    I used all your amino acid in order to do a package where I defined one command for each amino acid.

    Thus when you need to draw a tyrosine, you have to do \tyr{ scale } in you text and you get an arginine.

    If you want it you can find it on my web page !

    Thanks again for you nice molecules

  • #2 Germain Vallverdu, September 18, 2009 at 9:16 a.m.

    Just one more thing. I think that you may forget an hydrogen atom on one nitrogen of the arginine residue. I am talking about the end of the lateral chain, the nitrogen atom which is double bonded to the last carbon.

  • #3 Florian Hollandt, September 29, 2009 at 11:26 a.m.

    Thanks Germain, you're right about arginine.

    I tried your package, it's nicely done and can be quite usefull. I'm particularly glad about the different forms of histidine you added. You might want to shorten the path leading to the backbone-NH, however.

  • #4 Abhinav, July 29, 2013 at 11:32 p.m.

    I have updated the url for aminoacids package. The old link did not work for me. Thanks a lot for all your work.

    http://gvallver.perso.univ-pau.fr/?p=172

Adding comments is currently not enabled.
