Example: Puzzle

Published 2010-03-18 | Author: Marc van Dongen

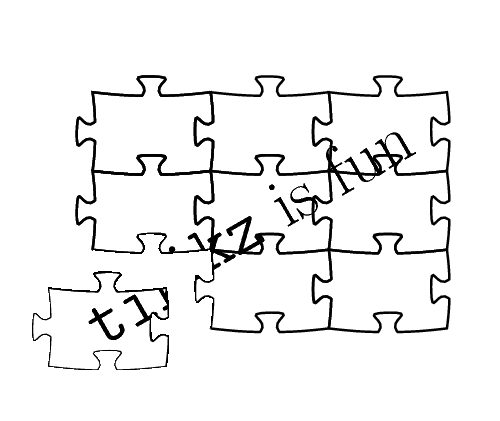

This tikz example display a puzzle with a text inside.

Download as: [PDF] [TEX]  •  [Open in writeLaTeX]

Puzzle

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de.

%Author: Marc van Dongen
\documentclass[12pt]{article}
\usepackage{tikz}
\usetikzlibrary{calc}
\usetikzlibrary{scopes}

\makeatletter

\newif\ifpuzzle@hole
\newif\ifpuzzle@hole@A
\newif\ifpuzzle@hole@B
\newif\ifpuzzle@hole@C
\newif\ifpuzzle@hole@D
\def\puzzle@width{0.25cm}
\def\puzzle@height{0.20cm}
\def\puzzle@holes{true,true,false,false}
\def\puzzle@set@hole@A#1,#2,#3,#4,{\csname puzzle@hole@A#1\endcsname}
\def\puzzle@set@hole@B#1,#2,#3,#4,{\csname puzzle@hole@B#2\endcsname}
\def\puzzle@set@hole@C#1,#2,#3,#4,{\csname puzzle@hole@C#3\endcsname}
\def\puzzle@set@hole@D#1,#2,#3,#4,{\csname puzzle@hole@D#4\endcsname}
\pgfkeys{/puzzle/width/.store in=\puzzle@width}
\pgfkeys{/puzzle/height/.store in=\puzzle@height}
\pgfkeys{/puzzle/holes/.store in=\puzzle@holes}

\def\tikzIsFun{
    \foreach \x in {0,1,2} {
        \foreach \y in {1,2} {
            \draw[puzzle piece,thick] (1.5*\x,\y) to +(1.5,1.0);
        }
    }
    \foreach \xy in {1,2} {
       \draw[puzzle piece,thick] (0,\xy) to +(1.5,1.0);
       \draw[puzzle piece,thick] (1.5*\xy,0) to +(1.5,1.0);
    }
    \draw (2.25,1.5) node[rotate=30] {\Huge\texttt{tikz} is fun};
}

\def\drawPuzzleSide#1#2#3{%
    let \p{mid}=($(#1)!0.5!(#2)$),
        \p{diff}=($(#2)-(#1)$),
        \p{diff 90}=($(0,0)!1.0!\csname ifpuzzle@hole@#3\endcsname90\else270\fi:(\p{diff})$),
        \n{len}={veclen(\x{diff},\y{diff})},
        \n{height}={\puzzle@height},
        \n{width}={\puzzle@width},
        \p{dy}=($(\n{height}*\x{diff 90}/\n{len},\n{height}*\y{diff 90}/\n{len})$),
        \p{dx}=($(\n{width}*\x{diff}/\n{len},\n{width}*\y{diff}/\n{len})$),
        \p{xx}=($(\p{diff})-(\p{dx})$),
        \p{11}=($(#1)+0.20*(\p{xx})-0.020*(\p{diff 90})$),
        \p{12}=($(#1)+0.35*(\p{xx})-0.030*(\p{diff 90})$),
        \p{13}=($(\p{mid})-0.5*(\p{dx})-0.030*(\p{diff 90})$),
        \p{21}=($(#2)-0.20*(\p{xx})-0.020*(\p{diff 90})$),
        \p{22}=($(#2)-0.35*(\p{xx})-0.030*(\p{diff 90})$),
        \p{23}=($(\p{mid})+0.5*(\p{dx})-0.030*(\p{diff 90})$),
        \p{14}=($(\p{13})+0.60*(\p{dx})+0.80*(\p{dy})$),
        \p{24}=($(\p{23})-0.60*(\p{dx})+0.80*(\p{dy})$),
        \p{00}=($(\p{mid})+(\p{dy})$),
        \p{15}=($(\p{00})-1.6*(\p{dx})-0.04*(\p{dy})$),
        \p{25}=($(\p{15})!2.0!(\p{00})$)
    in .. controls (\p{11}) and (\p{12}) .. (\p{13})
       .. controls (\p{14}) and (\p{15}) .. (\p{00})
       .. controls (\p{25}) and (\p{24}) .. (\p{23})
       .. controls (\p{22}) and (\p{21}) .. (#2)
}

\def\puzzle@set@holes{%
    \expandafter\puzzle@set@hole@A\puzzle@holes,
    \expandafter\puzzle@set@hole@B\puzzle@holes,
    \expandafter\puzzle@set@hole@C\puzzle@holes,
    \expandafter\puzzle@set@hole@D\puzzle@holes,
}
\def\drawPuzzlePiece{%
   let \p1=(\tikztostart),
       \p2=(\tikztotarget) in
    (\p1) \drawPuzzleSide{\p1}{\p1-|\p2}{A}
          \drawPuzzleSide{\p1-|\p2}{\p2}{B}
          \drawPuzzleSide{\p2}{\p1|-\p2}{C}
          \drawPuzzleSide{\p1|-\p2}{\p1}{D}
}

\tikzset{test/.style={to path={\drawPuzzlePiece}}}
\tikzset{puzzle piece/.style={to path={\drawPuzzlePiece},
                              execute at begin to=\puzzle@set@holes}}

\makeatother
\begin{document}
\thispagestyle{empty}

\begin{tikzpicture}
   \begin{scope}[even odd rule]
      \clip (-1,-1) rectangle (5,4)
            {[puzzle piece] (0,0) to (1.5,1.0)};
      \tikzIsFun
   \end{scope}
   \draw (0.1,0.1)
         node{\begin{tikzpicture}
                 \clip {[puzzle piece] (0,0) to (1.5,1.0)};
                 \draw[puzzle piece] (0,0) to (1.5,1.0);
                 \tikzIsFun
              \end{tikzpicture}};
\end{tikzpicture}

\end{document}
