# Example: Intersecting lines

Published 2007-03-20 | Author: Kjell Magne Fauske

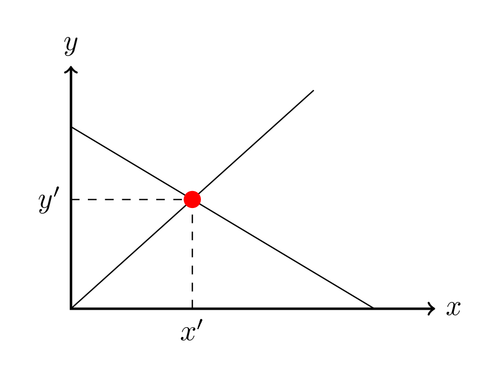

An example of using the intersection coordinate systems. Both the intersection and perpendicular coordinate system are used. The latter is a special case of the former, but has the shorter and more convenient -| and |- syntax.

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.

\documentclass{article}
\usepackage{tikz}
\begin{document}

\begin{tikzpicture}[scale=1.5]
% Draw axes
\draw [<->,thick] (0,2) node (yaxis) [above] {$y$}
|- (3,0) node (xaxis) [right] {$x$};
% Draw two intersecting lines
\draw (0,0) coordinate (a_1) -- (2,1.8) coordinate (a_2);
\draw (0,1.5) coordinate (b_1) -- (2.5,0) coordinate (b_2);
% Calculate the intersection of the lines a_1 -- a_2 and b_1 -- b_2
% and store the coordinate in c.
\coordinate (c) at (intersection of a_1--a_2 and b_1--b_2);
% Draw lines indicating intersection with y and x axis. Here we use
% the perpendicular coordinate system
\draw[dashed] (yaxis |- c) node[left] {$y'$}
-| (xaxis -| c) node[below] {$x'$};
% Draw a dot to indicate intersection point
\fill[red] (c) circle (2pt);
\end{tikzpicture}
\end{document}
