Example: Intersecting arcs

Published 2009-09-13 | Author: Andrew Mertz

An example that uses tkz-2d.

Download as: [PDF] [TEX]  •  [Open in writeLaTeX]

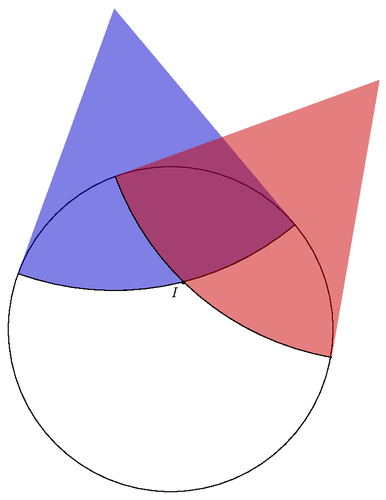

Intersecting arcs

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de.

% Author: Andrew Mertz
\documentclass{article}

\usepackage{tikz,tkz-2d}

\usepackage[graphics,tightpage,active]{preview}
\setlength{\PreviewBorder}{3pt}
\PreviewEnvironment{tikzpicture}
\begin{document}

\begin{tikzpicture}
  % Initialize tkz-2d and set the range of x and y values
  \tkzInit[xmin=-4.1,xmax=5.2,ymin=-4.1,ymax=8]
  \tkzClip

  % Define two points using TikZ. Note TikZ coordinates can be given
  % in polar form.
  \coordinate (A) at (100:8);
  \coordinate (B) at (50:8);

  % Draw a circle. Note star form of \tkzPoint defines points but does
  % not draw them.
  \tkzPoint*(0,0){C} % center of circle
  \tkzPoint*(0,4){R} % radius of circle
  \tkzCircle(C,R)

  % Define the points that are tangent to the circle where the tangent
  % line passes through either A or B
  \tkzTgtFromP(C,C,R)(A){D}{E}
  \tkzTgtFromP(C,C,R)(B){F}{G}

  % Compute the distance between A and D (the result is stored in
  % \tkzmathLen)
  \tkzMathLength(A,D)

  % Fill and highlight the sector centered at A
  \tkzFillSector*[color=blue!80!black,opacity=0.5](A,\tkzmathLen pt)(D,E)
  \tkzArc*(A,A,D)(D,E)

  % Fill and highlight the sector centered at B
  \tkzMathLength(B,F)
  \tkzFillSector*[color=red!80!black,opacity=0.5](B,\tkzmathLen pt)(F,G)
  \tkzArc*(B,B,F)(F,G)

  % Find the intersection of the two arcs
  \tkzInterCC(A,A,D)(B,B,F){H}{I}

  % Draw the intersection
  \tkzDrawPoint[pos=below left](I)
\end{tikzpicture}

\end{document}

% LocalWords:  TikZ tkz xmin xmax ymin ymax LocalWords

Comments

  • #1 FLW, September 12, 2013 at 9:17 p.m.

    Doesn't compile anymore, because tkz-2d was replaced by tkz-euclide...
