# Example: Splitting of Hydrogen in different strong magnetic fields

Published 2012-05-01 | Author: Stephan Fuchs

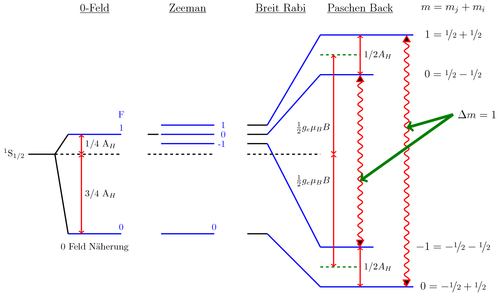

This picture shows the splitting of Hydrogen in different strong magnetic fields.

The “standalone” class has been used to fit the paper canvas to the big picture.

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.

% Splitting of Hydrogen in different strong magnetic fields
% Author: Stephan Fuchs, Uni Bonn
\documentclass{standalone}
\usepackage{tikz}
\usetikzlibrary{decorations.pathmorphing}
\usetikzlibrary{arrows}
\usepackage{nicefrac}
\begin{document}
\begin{tikzpicture}[ scale=0.5, level/.style={very thick} ]
\tikzset{photon/.style={<->,decorate, decoration={snake}, draw=red,
line width=0.4mm,>=triangle 60}}
\tikzset{rotdis/.style={<->,decorate, draw=red,line width=0.4mm}}
% Draw the energy levels.
%  0 Field
\draw[level] (3cm, 6cm) -- (5cm, 6cm)node at (3,6)[left]{$^{1}$S$_{1/2}$};
\draw[level] ( 5cm, 6cm) -- ( 6cm, 7.5cm);
\draw[level] ( 5cm, 6cm) -- ( 6cm, 0cm);
\draw[level,blue] ( 6cm, 7.5cm) -- ( 10cm, 7.5cm)node[above]{1};
\draw[level,blue] ( 6cm, 0cm) -- ( 10cm, 0cm)node[above]{0};
\draw[-,very thick, dashed](5cm,6cm)--(10cm,6cm);
\draw[rotdis] (7cm,7.5cm) -- (7cm,6cm)node[right,midway]{$1/4$ A$_{H}$};
\draw[rotdis] (7cm,6cm) -- (7cm,0cm)node[right,midway]{$3/4$ A$_{H}$};
\draw[blue] (10.cm,9cm)node{F};
\draw[](8cm,-1cm)node{0 Feld N\"aherung};
\draw[](8cm,17cm)node[font=\large]{\underline{0-Feld}};
%  weak field Field
\draw[level,blue] ( 13cm, 7.5cm) -- ( 17cm, 7.5cm)node[right]{\ 0};
\draw[level,blue] ( 13cm, 8.2cm) -- ( 17cm, 8.2cm)node[right]{\ 1};
\draw[level,blue] ( 13cm, 6.8cm) -- ( 17cm, 6.8cm)node[right]{-1};
\draw[level,blue] ( 13cm, 0cm) -- ( 17cm, 0cm)node[above]{0};
\draw[level] ( 12cm, 7.5cm) -- ( 12.8cm, 7.5cm);
\draw[-,very thick, dashed] ( 12cm, 6cm) -- ( 17cm, 6cm);
\draw[](15cm,17cm)node[font=\large]{\underline{Zeeman}};
% Breit Rabi
\draw[level] ( 19.5cm, 6.8cm) -- ( 21cm, 6.8cm);
\draw[level] ( 19.5cm, 7.5cm) -- ( 21cm, 7.5cm);
\draw[level] ( 19.5cm, 8.2cm) -- ( 21cm, 8.2cm);
\draw[level] ( 19.5cm, 0cm) -- ( 21cm, 0cm);
\draw[level,blue]  ( 21cm, 6.8cm) -- (25cm,-1cm);
\draw[level,blue]  ( 21cm, 7.5cm) -- (25cm,12cm);
\draw[level,blue]  ( 21cm, 8.2cm) -- (25cm,15cm);
\draw[level,blue] ( 21cm, 0cm)  --(25cm,-4cm);
\draw[-,very thick, dashed] ( 19.5cm, 6cm) -- ( 25cm, 6cm);
\draw[](22cm,17cm)node[font=\large]{\underline{Breit Rabi}};
% Paschen Back
\draw[level,blue] ( 25cm, -1cm) -- ( 29cm,-1cm);
\draw[level,blue] ( 25cm, 12cm) -- ( 29cm, 12cm);
\draw[level,blue] ( 25cm, 15cm) -- ( 32cm, 15cm);
\draw[level,blue] ( 25cm, -4cm) -- ( 32cm, -4cm);
\draw[photon] ( 31.5cm, -4cm) -- ( 31.5cm, 15cm);
\draw[photon] ( 28.cm, -1cm) -- ( 28.cm, 12cm);
\draw[level,green!50!black,dashed] ( 25cm, 13.5cm) -- ( 28cm, 13.5cm);
\draw[level,green!50!black,dashed] ( 25cm, -2.5cm) -- ( 28cm, -2.5cm);
\draw[rotdis] (26cm,-2.5cm) -- (26cm,6cm)node at (26cm,4cm)[left]
{$\frac{1}{2}g_{e}\mu_{B}B$};
\draw[rotdis] (26cm,6cm) -- (26cm,13.5cm)node at (26cm,8cm)[left]
{$\frac{1}{2}g_{e}\mu_{B}B$};
\draw[rotdis] (28cm,-4cm) -- (28cm,-1cm)node[right,midway]{$1/2 A_{H}$};
\draw[rotdis] (28cm,12cm) -- (28cm,15cm)node[right,midway]{$1/2 A_{H}$};
\draw[](35cm,-4cm)node[font=\large]{ $0=-\nicefrac{1}{2}+\nicefrac{1}{2}$};
\draw[](35cm,-1cm)node[font=\large]{$-1=-\nicefrac{1}{2}-\nicefrac{1}{2}$};
\draw[](35cm,12cm)node[font=\large]{ $0=\nicefrac{1}{2}-\nicefrac{1}{2}$};
\draw[](35cm,15cm)node[font=\large]{ $1=\nicefrac{1}{2}+\nicefrac{1}{2}$};
\draw[](35cm,17cm)node[font=\large]{$m=m_{j}+m_{i}$};
\draw[](28cm,17cm)node[font=\large]{\underline{Paschen Back}};
\draw[<-, draw=green!50!black,line width=1mm](31.5cm,8cm)--(35cm,9cm)
node[right,font=\large]{$\Delta m=1$};
\draw[<-, draw=green!50!black,line width=1mm](28.cm,4cm)--(35cm,9cm);
\end{tikzpicture}
\end{document}
