Example: Growing wave decoration

Published 2009-05-02 | Author: Nick Papior Andersen

A decoration of a path which evolves with time. Options are available for changing the start amplitude, end amplitude and the wave length. Furthermore you decide whether it should start as a cosine or sine wave. The input of the items is also enabled as lists. Thus it regulates it self along the path. The start size and end size can be switched which gives a decreasing wave.

Download as: [PDF] [TEX]  •  [Open in Overleaf]

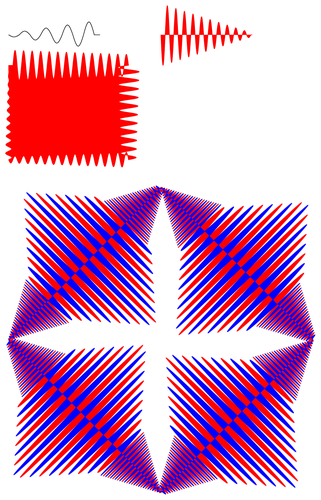

Growing wave decoration

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

% Author: Nick Papior Andersen
\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{decorations.pathreplacing}

\def\pgfdecorationgrowthstart{0cm}
\def\pgfdecorationgrowthendsizelist{0cm}
\def\pgfdecorationgrowthwavelengthlist{0cm}
\def\pgfdecorationgrowthendstepslist{1}
\def\pgfdecorationgrowthendstep{1}
\newif\ifpgfdecorationgrowthsine
\newif\ifpgfdecorationgrowthcosine
\newif\ifpgfdecorationonewavelength
\pgfdecorationgrowthcosinefalse
\pgfdecorationgrowthsinetrue
\pgfkeys{%
    /pgf/decoration/.cd,
    growth start size/.initial=0.5cm,
    growth end size/.initial=3cm,
    growth end steps/.initial=1,
    growth wave length/.initial=3pt,
    growth sine/.code={\pgfdecorationgrowthsinetrue\pgfdecorationgrowthcosinefalse},
    growth cosine/.code={\pgfdecorationgrowthsinefalse\pgfdecorationgrowthcosinetrue}
}
\def\pgfdecorationgrowthsetup{%
    \global\edef\pgfdecorationgrowthstart{\pgfkeysvalueof{/pgf/decoration/growth start size}}%
    \global\edef\pgfdecorationgrowthendsizelist{\pgfkeysvalueof{/pgf/decoration/growth end size}}%
    \global\edef\pgfdecorationgrowthendstepslist{\pgfkeysvalueof{/pgf/decoration/growth end steps}}%
    \global\edef\pgfdecorationgrowthwavelengthlist{\pgfkeysvalueof{/pgf/decoration/growth wave length}}%
}

\def\pgfdecorationgrowthsteps{1} % To keep track of steps from ending
\def\pgfdecorationliststeps{2} % To keep track of list items from ending, has to start from 2

\pgfdeclaredecoration{growth wave}{initial}%
{
    \state{initial}[width=0pt,next state=first] {%
        \pgfdecorationgrowthsetup%
        \pgfpathlineto{\pgfqpoint{0pt}{0pt}}%
        \global\edef\pgfdecorationgrowthsteps{0}%
        \global\edef\pgfdecorationliststeps{2}%
        \foreach \endsize in \pgfdecorationgrowthendsizelist {%
            \global\edef\pgfdecorationgrowthendsize{\endsize}%
            \breakforeach%
        }%
        \foreach \growthstep in \pgfdecorationgrowthendstepslist {%
            \global\edef\pgfdecorationgrowthendstep{\growthstep}%
            \breakforeach%
        }%
        \foreach \wavelength in \pgfdecorationgrowthwavelengthlist {%
            \global\edef\pgfdecorationgrowthwavelength{\wavelength}%
            \breakforeach%
        }%
        \pgfmathparse{(\pgfdecorationgrowthendsize - \pgfdecorationgrowthstart) * 2 * %
                \pgfdecorationgrowthwavelength / ( \pgfdecoratedremainingdistance * \pgfdecorationgrowthendstep)}%
        \global\edef\pgfdecorationgrowth{\pgfmathresult}%
    }%

    \state{first}[width=2*\pgfdecorationgrowthwavelength,next state=second] {%
        \pgfdecorationgrowthstepcounters%
        \pgfmathparse{\pgfdecorationgrowthstart + \pgfdecorationgrowthsteps * \pgfdecorationgrowth}%
        % The wave starts
        \ifpgfdecorationgrowthsine%
            \pgfpathsine{\pgfqpoint{\pgfdecorationgrowthwavelength}{\pgfmathresult pt}}%
            \pgfpathcosine{\pgfqpoint{\pgfdecorationgrowthwavelength}{-\pgfmathresult pt}}%
        \fi%
        \ifpgfdecorationgrowthcosine%
            \pgfpathsine{\pgfqpoint{\pgfdecorationgrowthwavelength}{-\pgfmathresult pt}}%
            \pgfpathcosine{\pgfqpoint{\pgfdecorationgrowthwavelength}{\pgfmathresult pt}}%
        \fi%
        \pgfdecorationgrowthstateend%
    }%

    \state{second}[width=2*\pgfdecorationgrowthwavelength,next state=first] {%
        \pgfdecorationgrowthstepcounters%
        \pgfmathparse{\pgfdecorationgrowthstart + \pgfdecorationgrowthsteps * \pgfdecorationgrowth}%
        % The wave continues
        \ifpgfdecorationgrowthsine%
            \pgfpathsine{\pgfqpoint{\pgfdecorationgrowthwavelength}{-\pgfmathresult pt}}%
            \pgfpathcosine{\pgfqpoint{\pgfdecorationgrowthwavelength}{\pgfmathresult pt}}%
        \fi%
        \ifpgfdecorationgrowthcosine%
            \pgfpathsine{\pgfqpoint{\pgfdecorationgrowthwavelength}{\pgfmathresult pt}}%
            \pgfpathcosine{\pgfqpoint{\pgfdecorationgrowthwavelength}{-\pgfmathresult pt}}%
        \fi%
        \pgfdecorationgrowthstateend%
    }
    \state{final} {%
        \pgfpathlineto{\pgfpointdecoratedpathlast}%
    }%
}
\def\pgfdecorationgrowthstateend{%
    \pgfmathadd{\pgfdecorationgrowthsteps}{1}%
    \global\edef\pgfdecorationgrowthsteps{\pgfmathresult} % Redefine the steps counter, globally.
}

\def\pgfdecorationgrowthstepcounters{%
    \pgfmathparse{\pgfdecorationgrowthendstep * \pgfdecoratedpathlength}
    \ifdim\pgfdecoratedcompleteddistance>\pgfmathresult pt%
        \foreach \endsize [count=\count] in \pgfdecorationgrowthendsizelist {%
            \ifnum\count=\pgfdecorationliststeps%
                \global\edef\pgfdecorationgrowthendsize{\endsize}%
                \breakforeach%
            \else%
                \global\edef\pgfdecorationgrowthstart{\endsize}%
            \fi%
        }%
        \global\edef\tempa{0}%
        \foreach \growthstep [count=\count] in \pgfdecorationgrowthendstepslist {%
            \ifnum\count=\pgfdecorationliststeps%
                \global\edef\pgfdecorationgrowthendstep{\growthstep}%
                \breakforeach%
            \else%
                \global\edef\tempa{\growthstep}%
            \fi%
        }%
        \foreach \wavelength [count=\count] in \pgfdecorationgrowthwavelengthlist {%
            \ifnum\count=\pgfdecorationliststeps%
                \global\edef\pgfdecorationgrowthwavelength{\wavelength}%
                \breakforeach%
            \fi%
        }%
        \pgfmathparse{int(\pgfdecorationliststeps+1)}%
        \global\edef\pgfdecorationliststeps{\pgfmathresult}%
        \global\edef\pgfdecorationgrowthsteps{0}% Redefine the steps counter, globally.
        \pgfmathparse{(\pgfdecorationgrowthendsize-\pgfdecorationgrowthstart) * 2 %
                * \pgfdecorationgrowthwavelength / (\pgfdecoratedpathlength * (\pgfdecorationgrowthendstep -\tempa))}%
        \global\edef\pgfdecorationgrowth{\pgfmathresult}%
    \fi%
}

\begin{document}

\begin{tikzpicture}
    \draw[decorate,decoration={growth wave,
        growth start size=2pt,
        growth end size=.5cm,
        growth wave length=5pt,
        growth cosine}] (0,0) -- (3,0);
    \draw[decorate,decoration={growth wave,
        growth start size=0pt,
        growth end size=.5cm,
        growth wave length=2pt,
        growth cosine},fill,color=red] (0,-1) rectangle (4,-4);
    \foreach \start/\end/\xstep/\ystep in {0/-10/5/-5,5/-5/10/-10,10/-10/5/-15,5/-15/0/-10} {
        \draw[fill,color=red,decorate,decoration={growth wave, % Choose the decoration
            growth start size=1pt,               % Sets the start amplitude of the wave
            growth end size={1cm,3cm,1cm,1pt},   % Sets the end amplitude of the wave
            growth end steps={0.25,.5,.75,1},    % Sets the percentual path positions where the transitions
                                                 % should be made
            growth wave length={1pt,3pt,3pt,1pt},% Sets the wave lengths
            growth sine}]                        % The wave starts as a sine
                (\start,\end) -- (\xstep,\ystep);

        \draw[fill,color=blue,decorate,decoration={growth wave, % Choose the decoration
            growth start size=1pt,              % Sets the start amplitude of the wave
            growth end size={1cm,3cm,1cm,1pt},  % Sets the end amplitudes of the wave
            growth end steps={0.25,.5,.75,1},   % Sets the percentual path positions where the transitions
                                                % should be made
            growth wave length={1pt,3pt,3pt,1pt},% Sets the wave lengths
            growth cosine}]                     % The wave starts as a cosine
                (\start,\end) -- (\xstep,\ystep);
    }
    \draw[xshift=5cm, decorate,decoration={growth wave,
        growth start size=1cm,
        growth end size=1pt,
        growth wave length=2pt,
        growth cosine},fill,color=red] (0,0) -- (3,0);
\end{tikzpicture}

\end{document}
