Example: Ford circle

Published 2009-03-09 | Author: Alain Matthes

According to Wikipedia, a Ford circle is a circle with center at (p/q, 1/(2q^2)) and radius 1/(2q^2), where p/q is an irreducible fraction, i.e. p and q are coprime integers.

There is an interesting connection between the Farey sequence and Ford circles. The following graphic is based on the simple algorithm found in the Wikipedia Faray sequence entry. More information about Ford circles can be found at Mathworld.

Download as: [PDF] [TEX]  •  [Open in Overleaf]

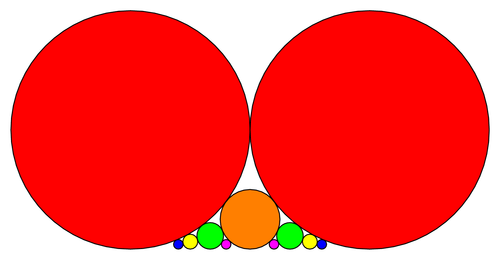

Ford circle

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

% Wikipedia : In mathematics, a Ford circle is a circle with centre at (p/q, 1/(2q^2)) and
% radius 1/(2q^2), where p/q is an irreducible fraction, i.e. p and q are coprime
% integers.
% There is an interesting connection between Farey sequence and Ford circles.
% The following graphic is based on the Simple algorithm that you can find here
% http://en.wikipedia.org/wiki/Farey_sequence
% interesting information can be found here
% http://mathworld.wolfram.com/FordCircle.html

\documentclass{article}
\usepackage[dvipsnames]{xcolor}
\usepackage{tikz}
\newcommand{\drawcircle}[3]{%
   \pgfmathparse{1/(2*#2*#2)}
   \let\tempradius\pgfmathresult
   \draw[fill=#3] (#1/#2,\tempradius) circle (\tempradius);
}

\begin{document}

\def\fordN{5}
\def\fordA{0}
\def\fordB{1}
\def\fordC{1}
\let\fordD\fordN
\begin{center}\begin{tikzpicture}[scale=4]

\drawcircle{\fordA}{\fordB}{red}
\foreach \i/\c in
    {0/blue,1/yellow,2/green,3/magenta,
    4/orange,5/magenta,6/green,7/yellow,8/blue,9/red}{%
 \pgfmathparse{\fordN+\fordB}\global\let\fordK\pgfmathresult
 \pgfmathparse{floor(\fordK/\fordD)}\global\let\fordK\pgfmathresult
 \pgfmathparse{\fordK*\fordC}\global\let\fordE\pgfmathresult
 \pgfmathparse{\fordE-\fordA}\global\let\fordE\pgfmathresult
 \pgfmathparse{\fordK*\fordD}\global\let\fordF\pgfmathresult
 \pgfmathparse{\fordF-\fordB}\global\let\fordF\pgfmathresult
 \global\let\fordA\fordC
 \global\let\fordB\fordD
 \global\let\fordC\fordE
 \global\let\fordD\fordF
 \drawcircle{\fordA}{\fordB}{\c}
}

\end{tikzpicture}\end{center}
\end{document}
% name Ford Circle
% utf8
% pdflatex
% author Alain Matthes
