Example: Table in the shape of an arrow

Published 2014-02-02 | Author: Gonzalo Medina

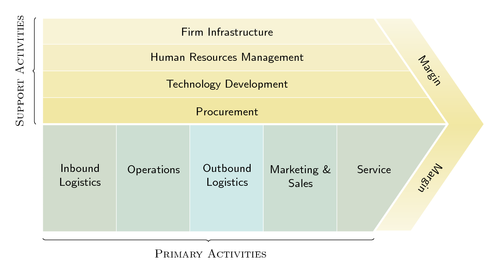

This table is drawn using the TikZ matrix library, in order to get the shape of an arrow.

It was written by Gonzalo Medina answering gieldl on TeX.SE. Slight modifications to the original code: sans serif font, small caps instead of all caps style, indentation and spacing.

Download as: [PDF] [TEX]  •  [Open in Overleaf]

Table in the shape of an arrow

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de. En français: TeXnique.fr.

% Table in the shape of an arrow
% Author: Gonzalo Medina
\documentclass{article}
\usepackage{tikz}
\usetikzlibrary{calc,matrix,decorations.markings,decorations.pathreplacing}

\definecolor{colone}{RGB}{209,220,204}
\definecolor{coltwo}{RGB}{204,222,210}
\definecolor{colthree}{RGB}{207,233,232}
\definecolor{colfour}{RGB}{248,243,214}
\definecolor{colfive}{RGB}{245,238,197}
\definecolor{colsix}{RGB}{243,235,179}
\definecolor{colseven}{RGB}{241,231,163}

\tikzset{
  table/.style={
    matrix of nodes,
    row sep=-\pgflinewidth,
    column sep=-\pgflinewidth,
    nodes={rectangle,text width=2cm,align=center},
    text depth=1.25ex,
    text height=2.5ex,
    nodes in empty cells
  }
}

\renewcommand*{\familydefault}{\sfdefault}
\newcommand{\cbox}[1]{\parbox[t]{2cm}{\centering #1}}

\begin{document}

\begin{tikzpicture}
  \matrix (mat) [table] {
    |[fill=colfour]|      & |[fill=colfour]|  & |[fill=colfour]|
      & |[fill=colfour]|  & |[fill=colfour]|  &                   \\
    |[fill=colfive]|      & |[fill=colfive]|  & |[fill=colfive]|
      & |[fill=colfive]|  & |[fill=colfive]|  &                   \\
    |[fill=colsix]|       & |[fill=colsix]|   & |[fill=colsix]|
      & |[fill=colsix]|   & |[fill=colsix]|   & |[fill=colsix]|   \\
    |[fill=colseven]|     & |[fill=colseven]| & |[fill=colseven]|
      & |[fill=colseven]| & |[fill=colseven]| & |[fill=colseven]| \\
    |[fill=colone]|       & |[fill=coltwo]|   & |[fill=colthree]|
      & |[fill=coltwo]|   & |[fill=colone]|   & |[fill=colone]|   \\
    |[fill=colone]|       & |[fill=coltwo]|   & |[fill=colthree]|
      & |[fill=coltwo]|   & |[fill=colone]|   & |[fill=colone]|   \\
    |[fill=colone]|       & |[fill=coltwo]|   & |[fill=colthree]|
      & |[fill=coltwo]|   & |[fill=colone]|   &                   \\
    |[fill=colone]|       & |[fill=coltwo]|   & |[fill=colthree]|
      & |[fill=coltwo]|   & |[fill=colone]|   &                   \\
  };

  % horizontal rules
  \foreach \row in {2,3,4}
    \draw[white] (mat-\row-1.north west) -- (mat-\row-6.north east);
  \draw[white,ultra thick] (mat-1-1.north west) -- (mat-1-6.north east);
  \draw[white,ultra thick] (mat-5-1.north west) -- (mat-5-6.north east);

  % vertical rules
  \foreach \col in {2,3,4,5}
    \draw[white] (mat-5-\col.north west) -- (mat-8-\col.south west);

  % The labels
  \node[fill=colfour] at (mat-1-3) {Firm Infrastructure};
  \node[fill=colfive] at (mat-2-3) {Human Resources Management};
  \node[fill=colsix] at (mat-3-3) {Technology Development};
  \node[fill=colseven] at (mat-4-3) {Procurement};
  \node at ([yshift=-10pt]mat-6-1) {\cbox{Inbound Logistics}};
  \node at ([yshift=-10pt]mat-6-2) {\cbox{Operations \\\mbox{}}};
  \node at ([yshift=-10pt]mat-6-3) {\cbox{Outbound Logistics}};
  \node at ([yshift=-10pt]mat-6-4) {\cbox{Marketing \& Sales}};
  \node at ([yshift=-10pt]mat-6-5) {\cbox{Service \\\mbox{}}};
  \node[rotate = 90] at ([xshift=-52pt]mat-3-1.north)
    {\textsc{Support Activities}};
  \node at ([yshift=-19pt, xshift=-0.5cm]mat-8-3.south)
    {\textsc{Primary Activities}};

  % Erase some visible lines outside the arrow
  \fill[white] (mat-1-5.north east) -- (mat-5-6.north east)
    -- (mat-1-6.north east) -- cycle;
  \fill[white] (mat-8-5.north east) -- (mat-5-6.north east)
    -- (mat-8-6.north east) -- cycle;

  % Draw the arrow tip
  \shade[top color=colfour!70, bottom color=colfour!70,
    middle color=colseven, draw=white, ultra thick]
    (mat-1-5.north) -- (mat-5-6.north) -- (mat-8-5.south) --
    (mat-8-5.south east) -- (mat-5-6.north east) -- (mat-8-5.south east) --
    (mat-5-6.north east) -- (mat-1-5.north east) -- cycle;

  % The slanted "Margin" labels
  \begin{scope}[decoration={markings,
    mark=at position .5 with \node[transform shape] {Margin};}]
  \path[postaction={decorate}]
    ( $ (mat-1-5.north)!0.5!(mat-1-5.north east) $ )
    -- ( $ (mat-5-6.north)!0.5!(mat-5-6.north east) $ );
  \path[postaction={decorate}]
    ( $ (mat-5-6.north)!0.5!(mat-5-6.north east) $ )
    -- ( $ (mat-8-5.south)!0.5!(mat-8-5.south east) $ );
  \end{scope}

  % The braces
  \draw[decorate, decoration={brace, mirror, raise=6pt}]
    (mat-1-1.north west) -- (mat-5-1.north west);
  \draw[decorate, decoration={brace, mirror, raise=6pt}]
    (mat-8-1.south west) -- (mat-8-5.south);
\end{tikzpicture}
\end{document}
