Example: 3D cone

Published 2007-02-13 | Author: Eugene Ressler

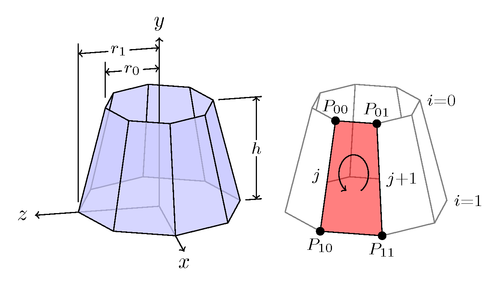

An annotated three dimensional drawing with transparency effects. The code has been generated using Sketch. Sketch is a small, simple system for producing line drawings of two- or three-dimensional solid objects and scenes. Sketch accepts a tiny scene description language and generates PGF/TikZ or PSTricks code. Sketch also supports hidden surface removal and its easy to embed TikZ and LaTeX code in your drawings.

The Sketch code used to generate the drawing is available for download. A detailed description of the code can be found in the Sketch manual.

Update: Read more about Sketch in my notebook entry: An introduction to Sketch 3D for PGF and TikZ users.

Author:Gene Ressler. Adapted to TikZ by Kjell Magne Fauske.

Download as: [PDF] [TEX]  •  [Open in writeLaTeX]

3D cone

Do you have a question regarding this example, TikZ or LaTeX in general? Just ask in the LaTeX Forum.
Oder frag auf Deutsch auf TeXwelt.de.

% 3D Cone
% Author: Gene Ressler. Adapted to TikZ by Kjell Magne Fauske.
% See http://www.frontiernet.net/~eugene.ressler/ for more details.
\documentclass{article}
\usepackage{tikz}
\begin{document}
\pagestyle{empty}

% The following code is generated by Sketch. I have edited it a bit
% to make it easier to read.
\begin{tikzpicture}[join=round]
    \tikzstyle{conefill} = [fill=blue!20,fill opacity=0.8]
    \tikzstyle{ann} = [fill=white,font=\footnotesize,inner sep=1pt]
    \tikzstyle{ghostfill} = [fill=white]
         \tikzstyle{ghostdraw} = [draw=black!50]
    \filldraw[conefill](-.775,1.922)--(-1.162,.283)--(-.274,.5)
                        --(-.183,2.067)--cycle;
    \filldraw[conefill](-.183,2.067)--(-.274,.5)--(.775,.424)
                        --(.516,2.016)--cycle;
    \filldraw[conefill](.516,2.016)--(.775,.424)--(1.369,.1)
                        --(.913,1.8)--cycle;
    \filldraw[conefill](-.913,1.667)--(-1.369,-.1)--(-1.162,.283)
                        --(-.775,1.922)--cycle;
    \draw(1.461,.107)--(1.734,.127);
    \draw[arrows=<->](1.643,1.853)--(1.643,.12);
    \filldraw[conefill](.913,1.8)--(1.369,.1)--(1.162,-.283)
                        --(.775,1.545)--cycle;
    \draw[arrows=->,line width=.4pt](.274,-.5)--(0,0)--(0,2.86);
    \draw[arrows=-,line width=.4pt](0,0)--(-1.369,-.1);
    \draw[arrows=->,line width=.4pt](-1.369,-.1)--(-2.1,-.153);
    \filldraw[conefill](-.516,1.45)--(-.775,-.424)--(-1.369,-.1)
                        --(-.913,1.667)--cycle;
    \draw(-1.369,.073)--(-1.369,2.76);
    \draw(1.004,1.807)--(1.734,1.86);
    \filldraw[conefill](.775,1.545)--(1.162,-.283)--(.274,-.5)
                        --(.183,1.4)--cycle;
    \draw[arrows=<->](0,2.34)--(-.913,2.273);
    \draw(-.913,1.84)--(-.913,2.447);
    \draw[arrows=<->](0,2.687)--(-1.369,2.587);
    \filldraw[conefill](.183,1.4)--(.274,-.5)--(-.775,-.424)
                        --(-.516,1.45)--cycle;
    \draw[arrows=<-,line width=.4pt](.42,-.767)--(.274,-.5);
    \node[ann] at (-.456,2.307) {$r_0$};
    \node[ann] at (-.685,2.637) {$r_1$};
    \node[ann] at (1.643,.987) {$h$};
    \path (.42,-.767) node[below] {$x$}
        (0,2.86) node[above] {$y$}
        (-2.1,-.153) node[left] {$z$};
    % Second version of the cone
    \begin{scope}[xshift=3.5cm]
    \filldraw[ghostdraw,ghostfill](-.775,1.922)--(-1.162,.283)--(-.274,.5)
                                   --(-.183,2.067)--cycle;
    \filldraw[ghostdraw,ghostfill](-.183,2.067)--(-.274,.5)--(.775,.424)
                                   --(.516,2.016)--cycle;
    \filldraw[ghostdraw,ghostfill](.516,2.016)--(.775,.424)--(1.369,.1)
                                   --(.913,1.8)--cycle;
    \filldraw[ghostdraw,ghostfill](-.913,1.667)--(-1.369,-.1)--(-1.162,.283)
                                   --(-.775,1.922)--cycle;
    \filldraw[ghostdraw,ghostfill](.913,1.8)--(1.369,.1)--(1.162,-.283)
                                   --(.775,1.545)--cycle;
    \filldraw[ghostdraw,ghostfill](-.516,1.45)--(-.775,-.424)--(-1.369,-.1)
                                   --(-.913,1.667)--cycle;
    \filldraw[ghostdraw,ghostfill](.775,1.545)--(1.162,-.283)--(.274,-.5)
                                   --(.183,1.4)--cycle;
    \filldraw[fill=red,fill opacity=0.5](-.516,1.45)--(-.775,-.424)--(.274,-.5)
                                         --(.183,1.4)--cycle;
    \fill(-.775,-.424) circle (2pt);
    \fill(.274,-.5) circle (2pt);
    \fill(-.516,1.45) circle (2pt);
    \fill(.183,1.4) circle (2pt);
    \path[font=\footnotesize]
            (.913,1.8) node[right] {$i\hbox{$=$}0$}
            (1.369,.1) node[right] {$i\hbox{$=$}1$};
    \path[font=\footnotesize]
            (-.645,.513) node[left] {$j$}
            (.228,.45) node[right] {$j\hbox{$+$}1$};
    \draw (-.209,.482)+(-60:.25) [yscale=1.3,->] arc(-60:240:.25);
    \fill[black,font=\footnotesize]
                    (-.516,1.45) node [above] {$P_{00}$}
                    (-.775,-.424) node [below] {$P_{10}$}
                    (.183,1.4) node [above] {$P_{01}$}
                    (.274,-.5) node [below] {$P_{11}$};
    \end{scope}
\end{tikzpicture}

\end{document}
